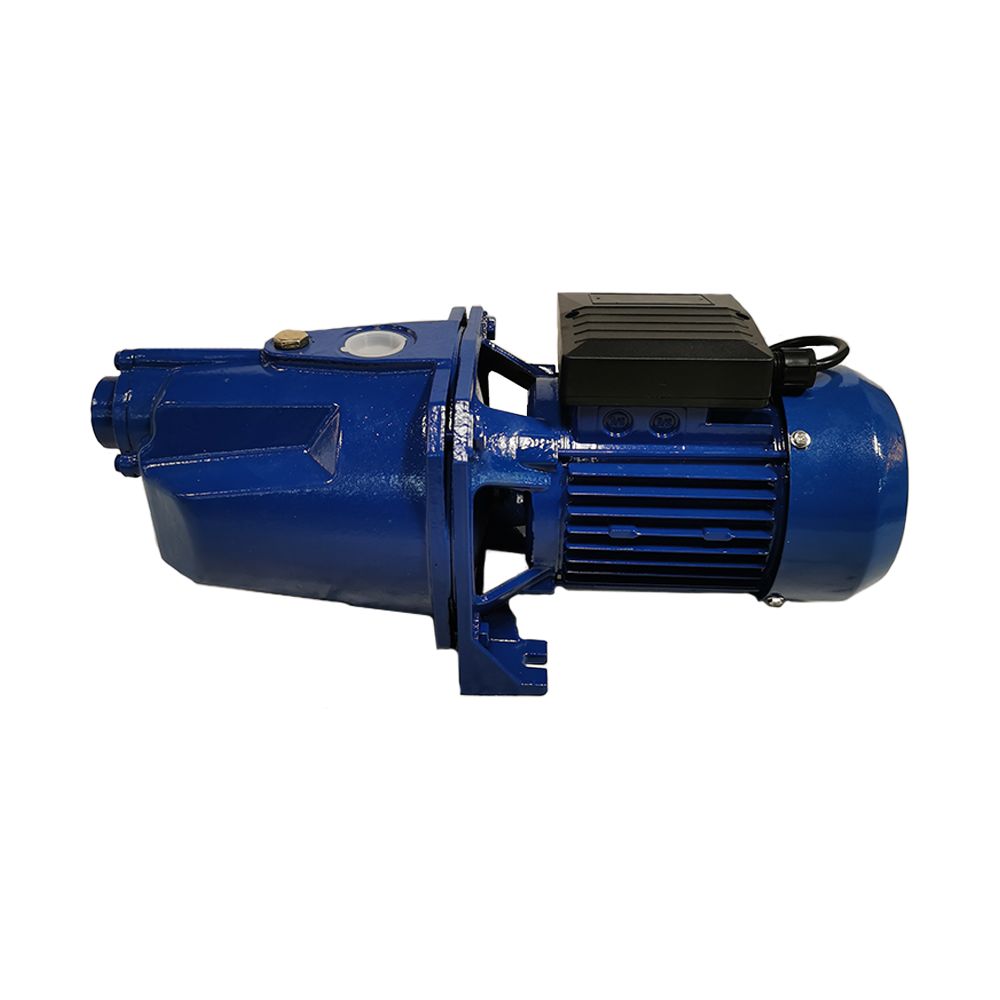

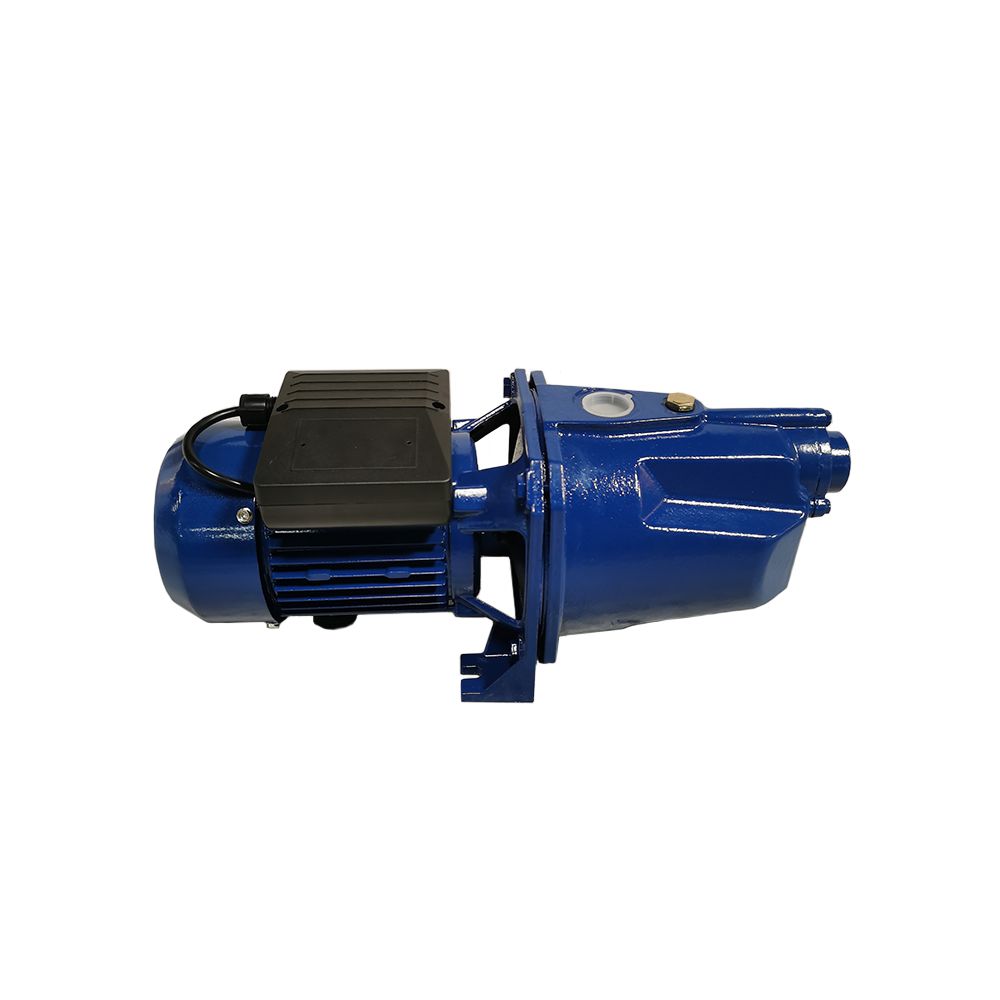

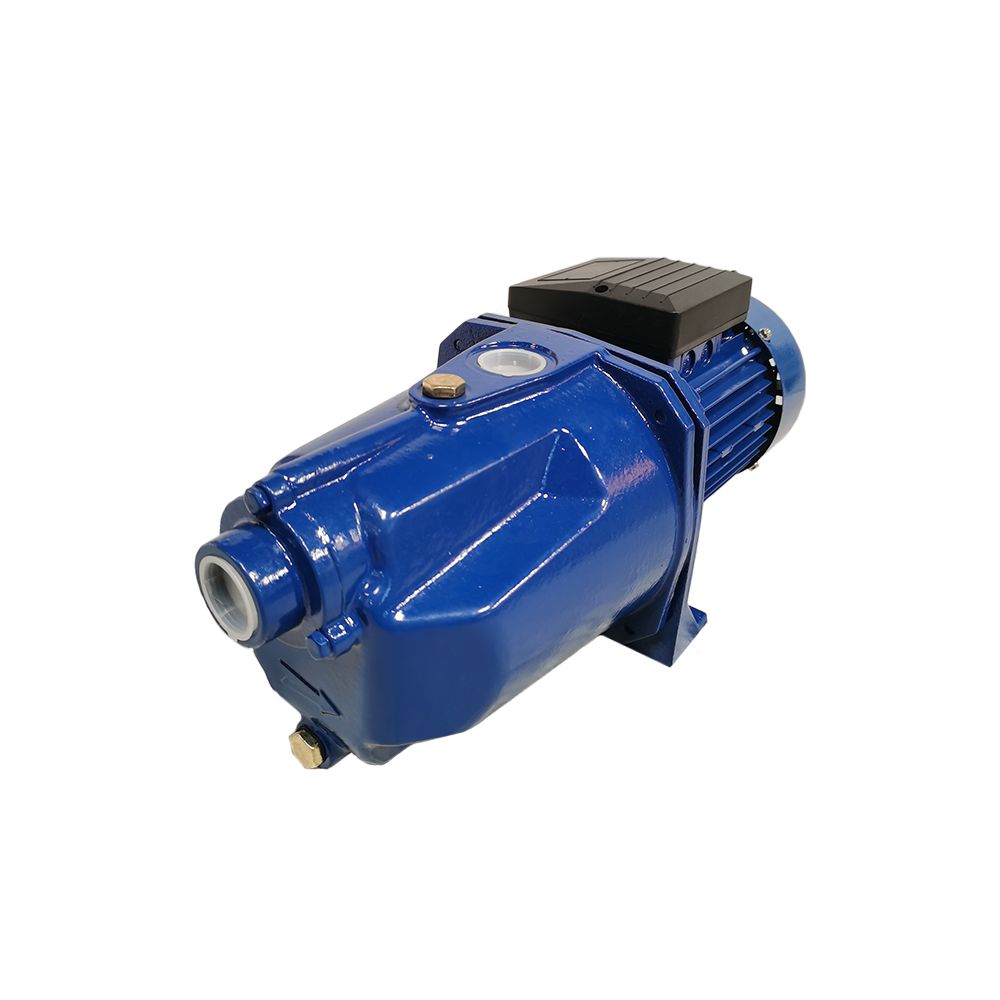

1.5HP / 1KW JET-C Self-Priming Dej twj tso kua mis

Daim ntawv thov

JET-C series Self-priming Dej twj tso kua mis

Qhia txog JET-C Series Jet Water Pumps - txhim khu kev qha, muaj txiaj ntsig kev daws teeb meem rau txhua yam koj xav tau kev siv dej. Tsim los xa cov kev ua tau zoo tshaj plaws, lub twj tso kua mis no yog kev sib xyaw ua ke zoo tshaj plaws ntawm cov thev naus laus zis thiab kev tsim tsis zoo.

JET-C Series dav hlau twj tso kua mis yog tsim los ua kom tau raws li cov qauv kev lag luam siab tshaj plaws. Nruab nrog lub cev muaj zog thiab lub xeev-ntawm-the-art hydraulic system, lub twj tso kua mis xa cov dej ntws tshwj xeeb, ua kom cov dej muaj txiaj ntsig zoo rau ntau yam kev siv. Txawm hais tias koj xav tau hloov dej los ntawm qhov dej, reservoir lossis tank, lub twj tso kua mis no yog koj txoj kev daws teeb meem.

Ib qho ntawm cov yam ntxwv zoo ntawm JET-C series ntawm cov twj tso dej dav hlau yog lawv cov kev tsim kho ruaj khov. Ua los ntawm cov ntaub ntawv zoo, lub twj tso kua mis no tuaj yeem tiv taus qhov hnyav tshaj plaws. Nws lub cev tiv thaiv corrosion ua kom lub neej ntev dua, ua rau nws muaj peev xwm ua tau zoo rau xyoo tom ntej.

Nrog nws cov compact, lub teeb yuag tsim, lub twj tso kua mis yog portable heev, ua rau nws zoo tagnrho rau ob qho tib si nyob thiab kev lag luam siv.

Kev nyab xeeb yog qhov tseem ceeb tshaj plaws hauv kev tsim ntawm JET-C Series dej dav hlau twj tso kua mis. Nws muaj ntau yam kev nyab xeeb xws li kev tiv thaiv thermal thiab kev tiv thaiv overload tiv thaiv lub cev muaj zog. Qhov no ua kom lub twj tso kua mis lub neej thiab kev thaj yeeb ntawm lub siab rau tus neeg siv.

Cov xwm txheej ua haujlwm

Ua kua kub txog 60 ℃

ambient kub txog li 40 ℃

Tag nrho suction nqa mus txog 9m

Kev ua haujlwm tas mus li

Pump

Pump Lub cev: Cam khwb cia hlau

Impeller: tooj dag / Techno-polymer (PPO)

Mechanical Foob: Carbon / Ceramic / Stainless Hlau

Lub cev muaj zog

Ib Theem

Heavy Duty Ua haujlwm tsis tu ncua

Lub cev muaj zog: Aluminium

Ncej: Carbon Steel / Stainless Hlau

Rwb thaiv tsev: Class B / Class F

Kev tiv thaiv: IP44 / IP54

Cua txias: Sab nraud qhov cua

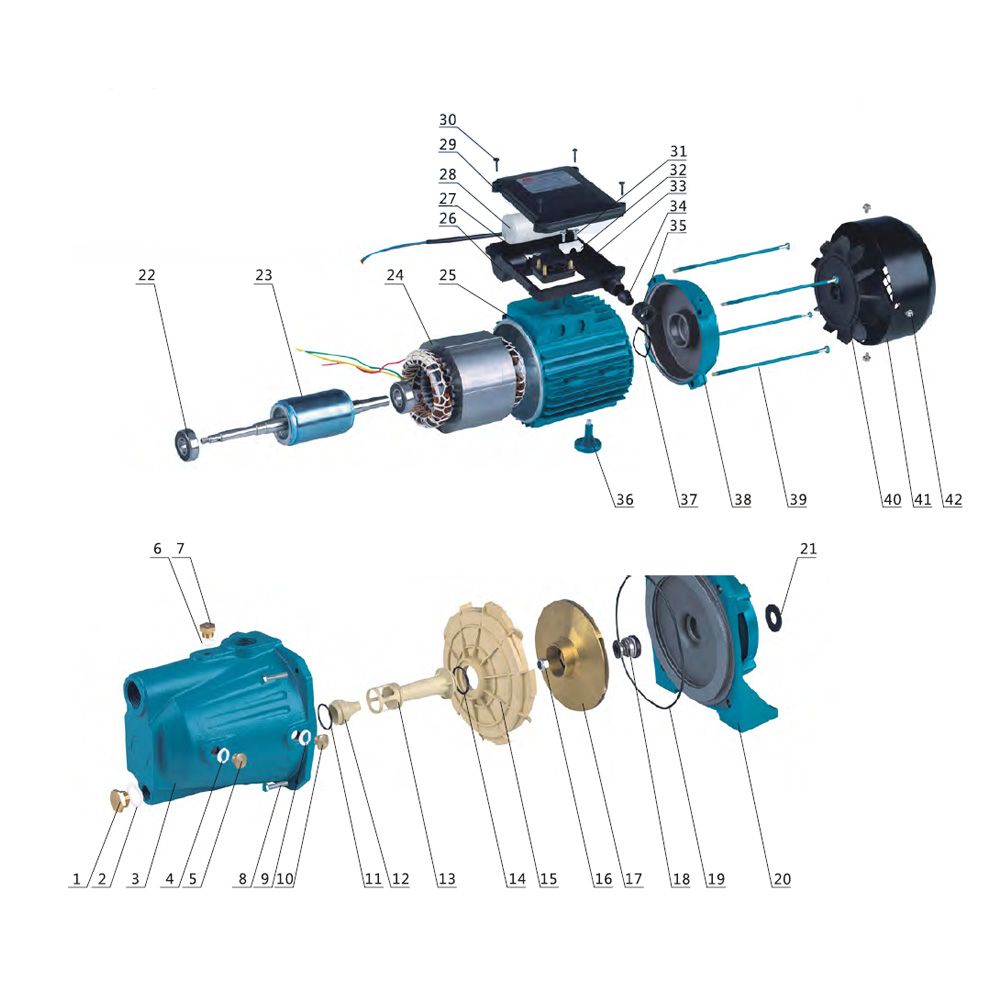

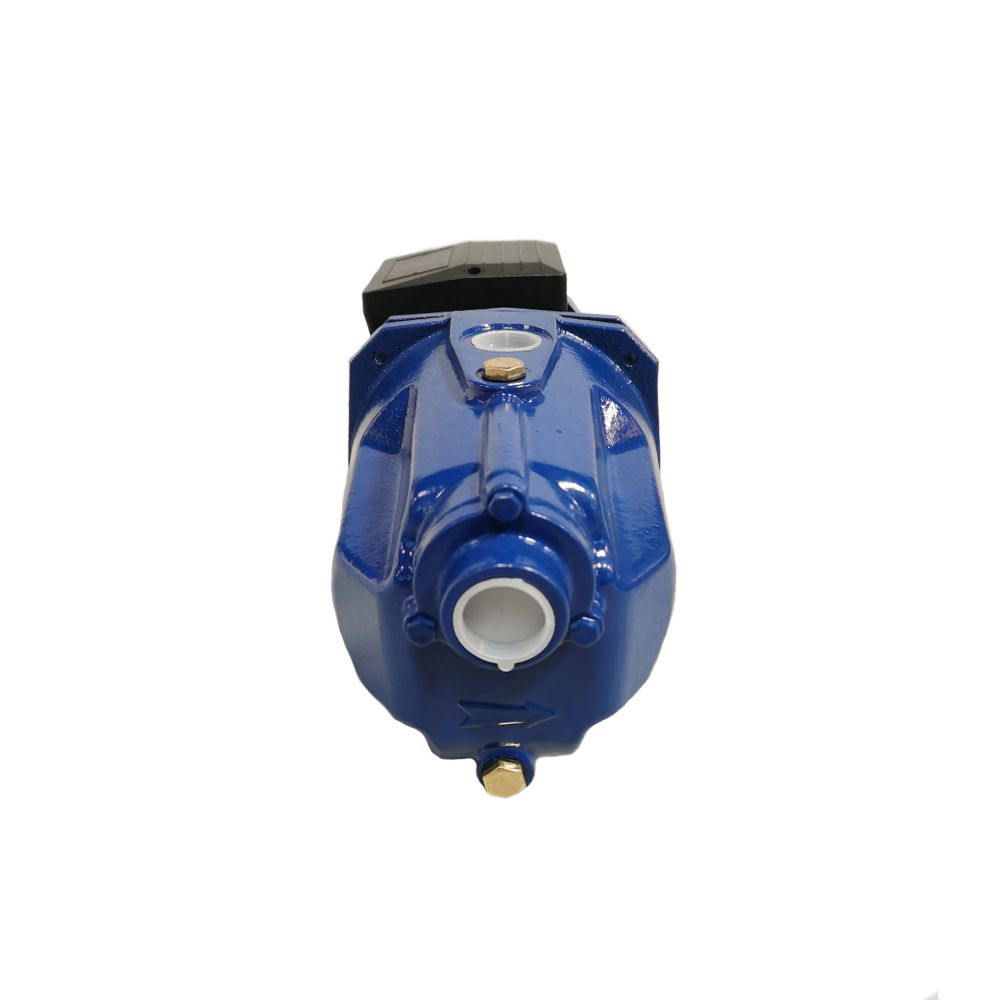

DUAB NTAWM PUMP

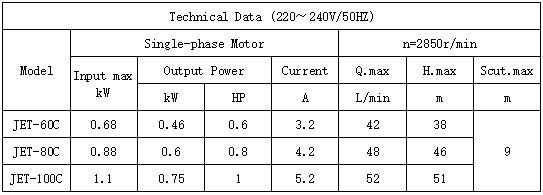

TECHNICAL DATA

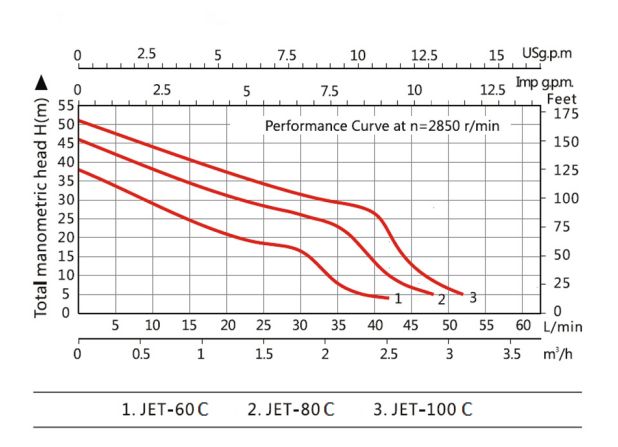

PERFORMANCE chart at N = 2850 min

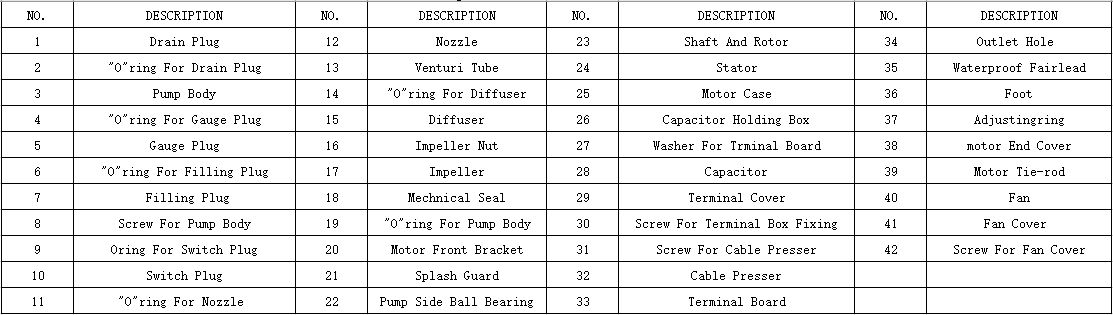

Qauv ntawm Pump

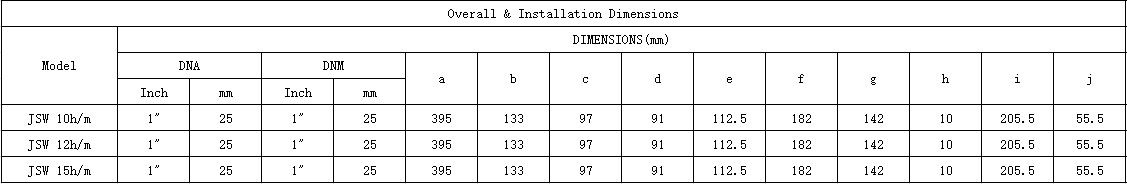

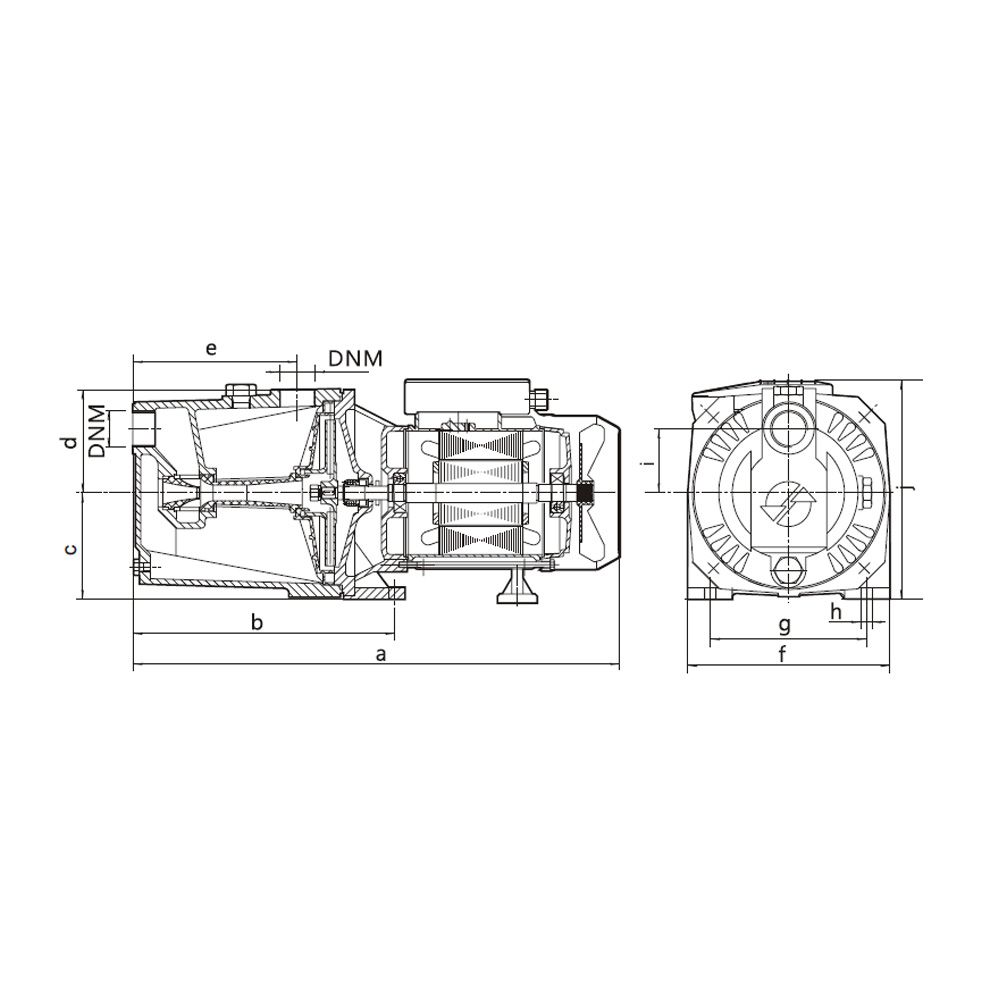

Loj Cov Lus Qhia Ntawm Lub Pump
